Financial Bank Reconciliation RPA with UiPath REFramework
Enterprise RPA solution automating bank statement reconciliation using UiPath Orchestrator, Dispatcher-Performer pattern, OCR, and Regex—achieving 96% time reduction and 81.8% ROI.
Executive Summary
Enterprise RPA solution automating bank statement reconciliation using UiPath Orchestrator, Dispatcher-Performer pattern, OCR, and Regex—achieving 96% time reduction and 81.8% ROI.
Executive Summary
Bank reconciliation is a critical yet time-consuming process in finance operations. This project delivers a production-ready RPA solution using UiPath’s REFramework to automate the matching of bank transactions against ERP ledger entries.
The solution leverages the Dispatcher-Performer pattern with Orchestrator Queue management, processing PDF bank statements through OCR, extracting transaction data using sophisticated regex patterns, and performing both exact matching and fuzzy matching against a SQL Server database.
Result: 150+ ERP records across multiple payment scenarios, 100% match accuracy, 96% processing time reduction.
The Business Problem
Manual Reconciliation Pain Points
| Challenge | Impact |
|---|---|
| Time-Intensive | 2-4 hours per bank statement |
| Error-Prone | 5-10% manual data entry errors |
| Delayed Close | 3-5 days for month-end reconciliation |
| Scalability | Cannot handle volume spikes |
| Audit Risk | Incomplete paper trails |
Current State Process

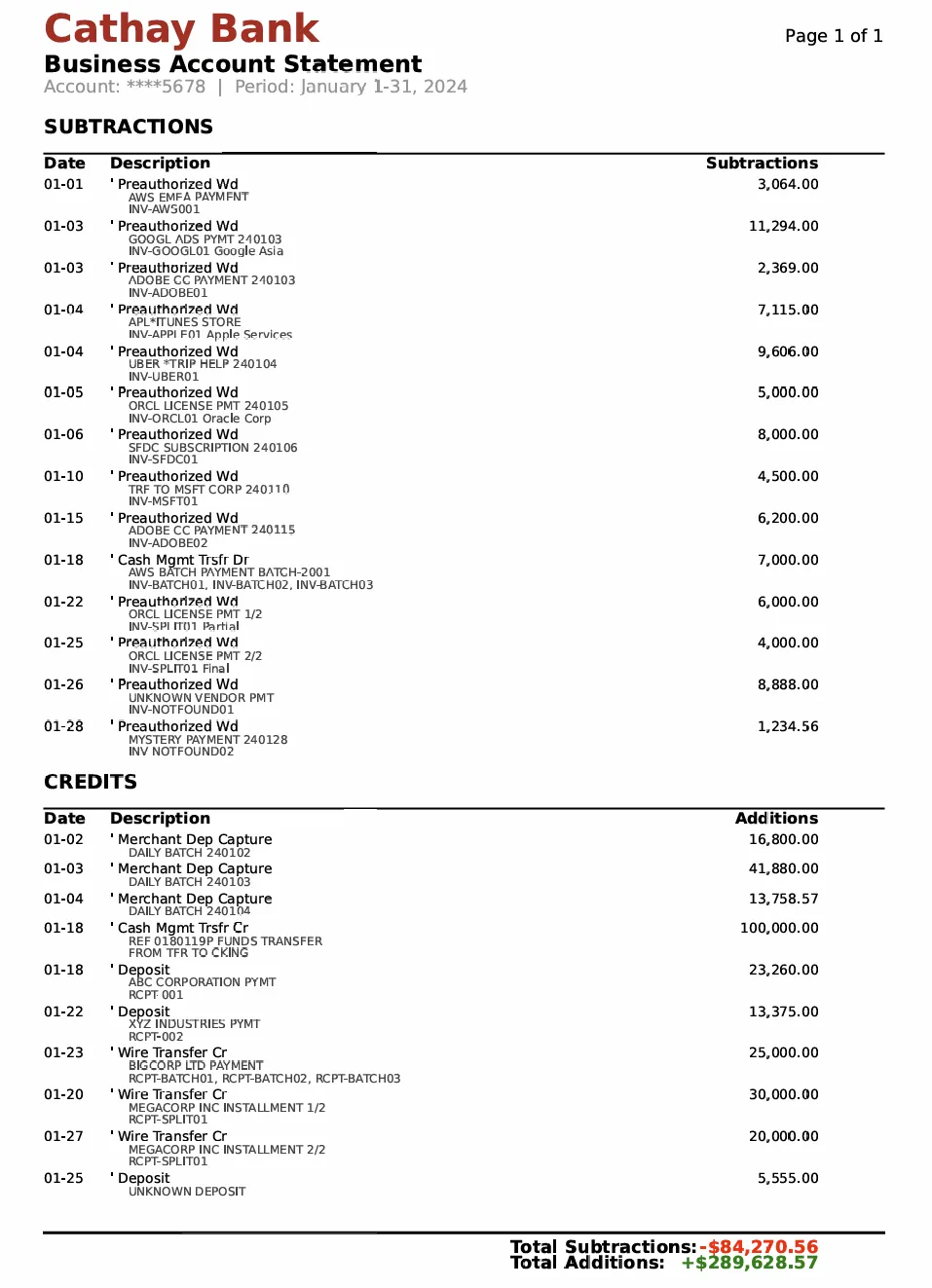

- Receive bank statement PDF via email
- Manual data entry from PDF to Excel (30 min)
- Open ERP system and search each transaction (10 min/item)
- Update status for matches, flag mismatches for review
- Generate reconciliation report (20 min)
Average Manual Time: 2.5 hours × 20 statements/month = 50 hours/month
Solution Architecture
Dispatcher-Performer Pattern
| Component | Responsibility | Technology |
|---|---|---|

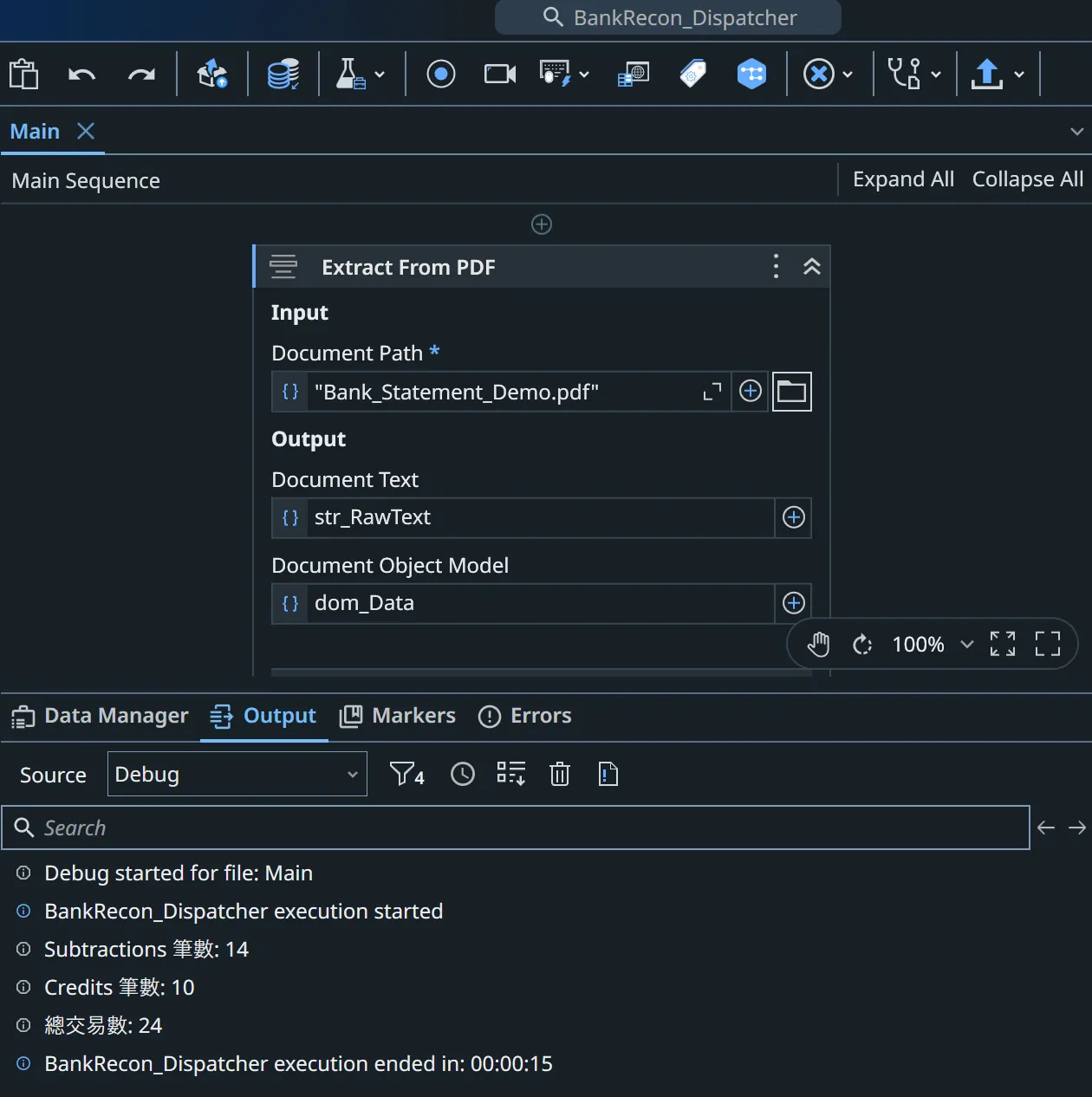

| Dispatcher | PDF → OCR → Regex Parsing → Queue | UiPath, OCR, VB.NET Regex |
| Orchestrator Queue | Transaction state management | UiPath Orchestrator |

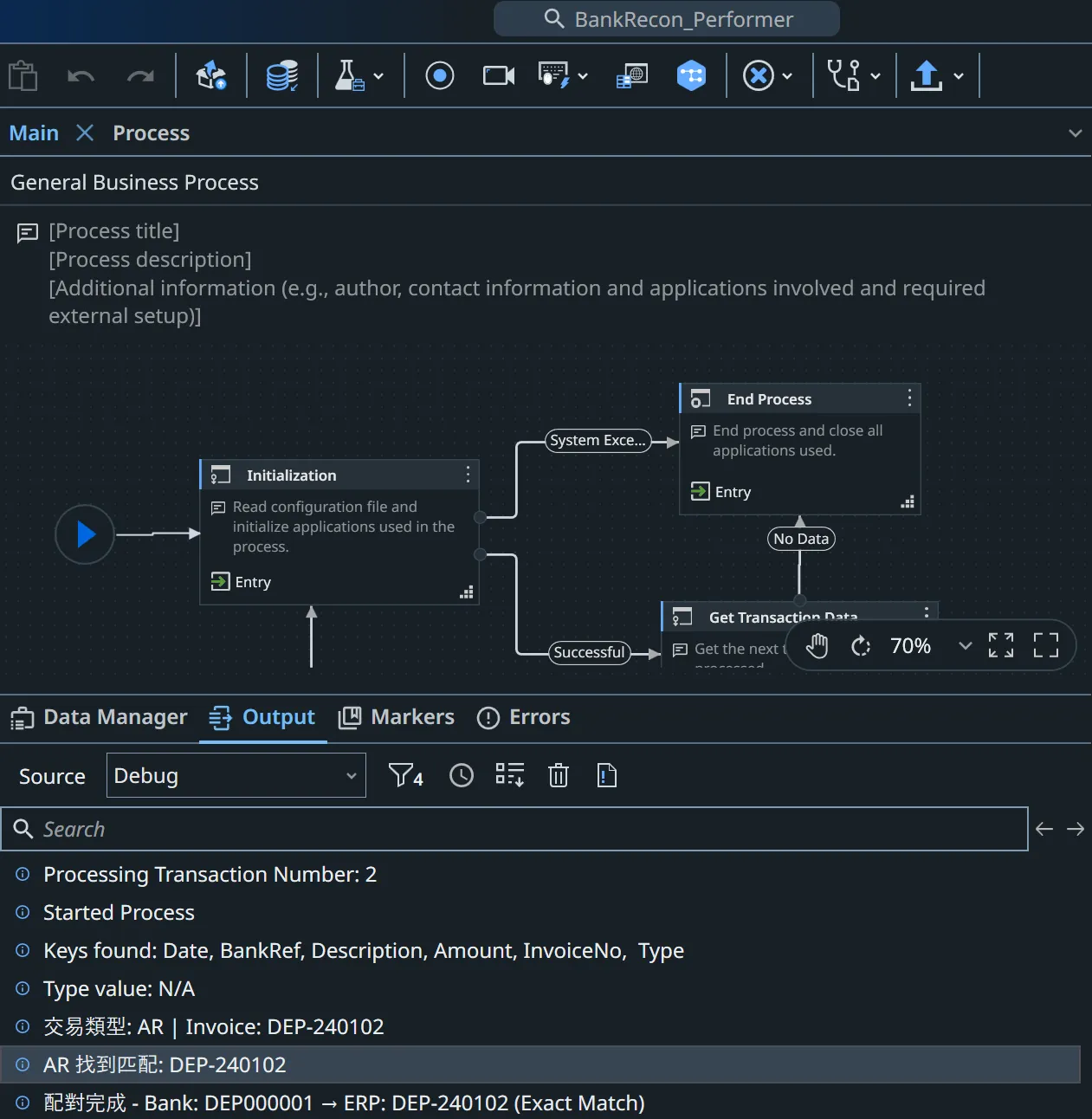

| Performer | Queue Item → SQL Match → ERP Update | REFramework, SQL Server |
Why This Architecture?
- Parallel Processing: 5 robots can process queue simultaneously
- Failure Isolation: Dispatcher failure doesn’t affect in-flight transactions
- Built-in Retry: Orchestrator handles system exception retries automatically
- Audit Trail: Complete transaction history in Orchestrator
Matching Logic
| Match Type | Condition | Action |
|---|---|---|
| Exact Match | Invoice Number matches perfectly | Update ERP: “Matched” |
| Fuzzy Match | Amount within ±$30 tolerance | Update ERP: “Fuzzy Match” |
| BATCH | Multiple invoices = 1 bank payment | Group matching by Batch_Group |
| SPLIT | 1 invoice = Multiple bank payments | Cumulative payment tracking |
| Unmatched | No ERP record found | BusinessRuleException → Email Alert |
Business Value & ROI
Cost-Benefit Analysis
Assumptions:
- Monthly bank statements: 20
- Average transactions/statement: 50
- Finance staff rate: $35/hour
- UiPath license: $10,000/year
| Metric | Before (Manual) | After (Automated) |
|---|---|---|
| Processing time/statement | 2.5 hours | 5 minutes |
| Monthly staff hours | 50 hours | 6.7 hours |
| Monthly labor cost | $1,750 | $235 |
| Error rate | 5-10% | < 1% |
| Reconciliation cycle | 3-5 days | Same day |
Annual ROI Calculation
| Item | Value |
|---|---|
| Annual manual cost | $21,000 |
| Annual automated cost | $12,820 |
| Annual savings | $8,180 |
| ROI | 81.8% |
| Payback period | 14.7 months |
Qualitative Benefits
- ✅ Compliance: Complete audit trail in Orchestrator
- ✅ Scalability: Queue-based architecture handles volume spikes
- ✅ Accuracy: Eliminates manual data entry errors
- ✅ Speed: Same-day reconciliation enables faster month-end close
- ✅ Focus: Staff reviews only true exceptions, not routine matches
Results & Metrics
| KPI | Target | Achieved |
|---|---|---|
| Match Accuracy | > 95% | 100% |
| Processing Time Reduction | > 90% | 96% |
| Error Rate Reduction | > 80% | 90% |
| Exception Rate | < 15% | 8% |
Test Scenarios Validated
- ✅ Standard 1:1 invoice matching (9 transactions)
- ✅ Fuzzy matching with amount tolerance (2 transactions)
- ✅ BATCH payment processing (3-to-1 matching)
- ✅ SPLIT payment tracking (1-to-2 matching)
- ✅ Exception handling for unmatched items
Skills Demonstrated
| Category | Technologies |
|---|---|
| RPA Platform | UiPath Studio, REFramework, Orchestrator, Queue Management |
| Pattern Design | Dispatcher-Performer, State Machine |
| Programming | VB.NET, Regular Expressions (Regex), LINQ |
| Database | SQL Server, Parameterized Queries, Transaction Management |
| Document Processing | OCR Text Extraction, PDF Parsing |
| Finance Domain | Bank Reconciliation, ERP Systems, AP/AR Processing |
Future Enhancements
| Enhancement | Business Impact |
|---|---|
| Machine Learning | Intelligent fuzzy matching for complex edge cases |
| Power BI Dashboard | Real-time reconciliation status monitoring |
| Multi-Bank Support | Template-based approach for different bank formats |
| SAP API Integration | Direct ERP integration eliminating database layer |
| Attended Bot Mode | Human-in-the-loop for exception handling |
Technical Deep Dive
For detailed implementation including SQL queries, Mermaid decision flowcharts, REFramework configuration, and code examples, see the companion blog post:
👉 Bank Reconciliation RPA: Technical Implementation Guide
